We design and build concrete retaining walls in Lenexa, KS that hold back soil and shape your yard safely. From structural walls on slopes to shorter garden borders, we use proper footing, drainage, and reinforcement so your retaining wall stays stable and looks good for years.
Legendary Concrete Lenexa provides professional concrete retaining wall throughout Lenexa, KS, Kansas and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 913-937-8567 or request your free quote.
Durable concrete retaining walls built for Lenexa yards
If your Lenexa yard slopes, washes out in heavy rain, or leaves you with unusable space, a concrete retaining wall can solve several problems at once. At Legendary Concrete Lenexa, we design and build retaining walls that control erosion, manage drainage, and create level areas for patios, play spaces, and planting beds.
Our crew works all over Lenexa and nearby Johnson County, so we are familiar with the clay-heavy soils, the spring storm patterns, and the freeze-thaw cycles that can push a poorly built wall out of alignment. When we look at your property, we are not just measuring a wall length. We are looking at water flow across the yard, how close the wall will be to structures or fences, and what kind of loads it will carry, such as parking pads, driveways, or raised patios.
Concrete is a strong choice for retaining walls in Kansas because it handles moisture better than timber and lasts longer than most block systems when properly reinforced. We can build walls that are purely functional and hidden behind landscaping, or walls that become a visible architectural feature with textured finishes and integrated steps. Either way, our focus is on long-term stability so you do not face leaning, cracking, or bulging a few years down the road.
How we design and plan your concrete retaining wall
Every successful concrete retaining wall starts with careful planning. When you contact Legendary Concrete Lenexa, we begin with a site visit to walk the property with you. We measure slopes, flag utilities, and ask how you want to use the area once the wall is in place. For example, a wall that will support a driveway has different design needs than a wall holding back a garden bed.
We look at wall height, length, and any changes in grade to determine whether you need a simple gravity wall or a reinforced structural wall. In Lenexa, walls over a certain height can require engineering approval and sometimes a city permit, especially near property lines or drainage easements. We help you understand where those thresholds are and can coordinate with local engineers when needed.
Next, we talk materials and appearance. With concrete retaining walls you can choose between poured-in-place concrete, which gives a clean, modern look, and concrete block or segmental systems that can be faced with stone or textured units. If you want to match existing concrete on your property, we can discuss color additives, exposed aggregate, or stamped textures. We also plan for practical details such as step locations, safety railings if required, and access for lawn equipment.
Before work begins, we provide a written scope of work that spells out wall dimensions, reinforcement details, drainage components, and finish options. This transparency helps you compare our proposal to others and understand exactly what you are paying for, instead of vague promises that can hide shortcuts.
Construction process, step by step
A concrete retaining wall is only as good as what you cannot see. Our crews follow a step-by-step process that focuses on the foundation and drainage so your wall can handle Lenexa’s wet springs and winter freeze cycles.
First, we excavate to the designed depth and width, removing soft or organic soils that cannot support a wall. This often means going deeper than homeowners expect, especially in backyards that have been filled or regraded in the past. We install a compacted gravel base, using plate compactors or rammers to achieve a solid, level foundation.

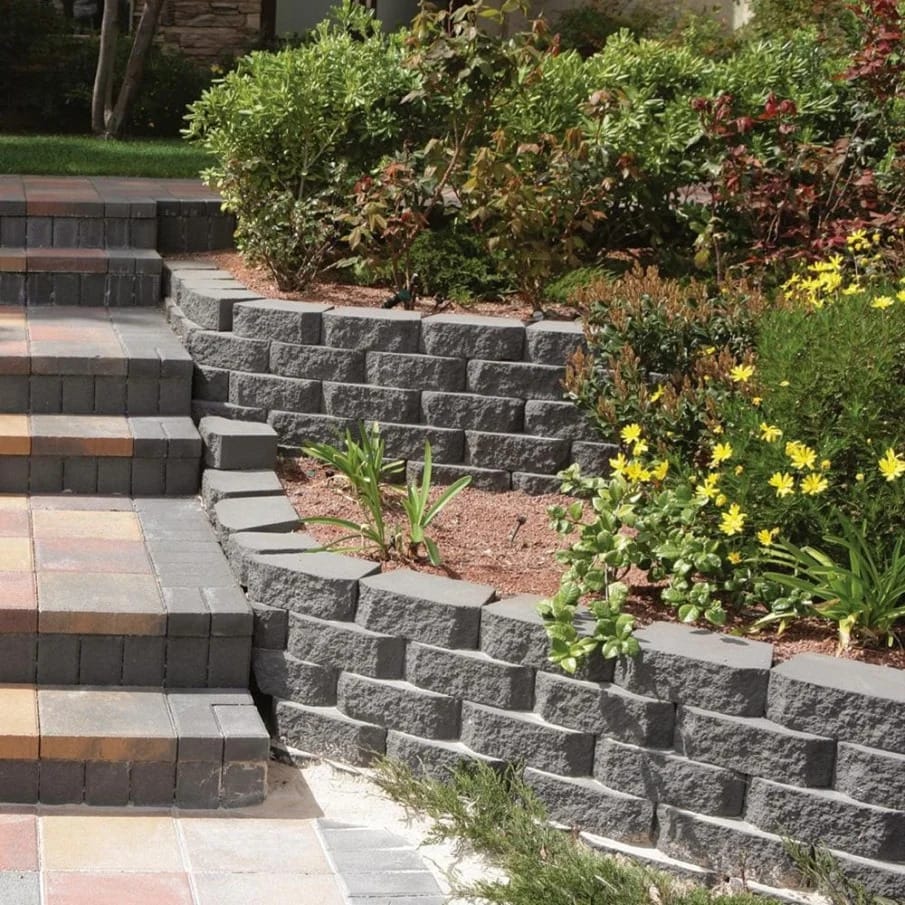

For poured concrete walls, we set up sturdy forms and place steel reinforcement (rebar) in a grid or cage pattern based on the wall height and loading. Proper rebar placement is crucial to prevent cracking and bowing. For block-style or modular concrete retaining walls, we start with a precisely leveled base course of blocks, then stagger vertical joints as we stack courses, sometimes adding geogrid reinforcement that extends back into the soil behind the wall.
Drainage is the most overlooked but critical part of a retaining wall in this region. Behind the wall, we install a layer of clean gravel and a perforated drain pipe that directs water away from the structure. We typically wrap the drainage zone with filter fabric to keep Lenexa’s fine clay particles from clogging the system. Without this, water pressure builds up (called hydrostatic pressure) and can cause even a well-built wall to lean or fail.
After concrete is poured, we allow proper curing time, then strip forms and inspect for any surface issues that need patching. We may apply sealers or surface treatments if you select those options. Finally, we backfill in thin layers, compacting as we go so the soil settles evenly and does not put unexpected stress on the new wall.
Cost factors and how to control your budget
Homeowners often ask what a concrete retaining wall costs per foot, but the honest answer is that several factors in Lenexa can cause big price differences. The main drivers are wall height, length, site access, and soil conditions.
Height is one of the biggest cost factors because taller walls require more concrete, more reinforcement, deeper footings, and more extensive drainage. A 2 foot garden wall is very different from an 8 foot wall holding back a driveway or neighboring property. Length matters too, but not as dramatically, since some costs like equipment setup are similar regardless of how many feet of wall we build.
Site access can raise or lower your cost significantly. If we can get a skid steer, mini excavator, or concrete truck close to the work area, the job goes faster and costs less. If everything has to be moved through a narrow side yard, around a pool, or up a steep slope by smaller equipment or by hand, labor hours go up. During our first visit, Legendary Concrete Lenexa looks at access carefully and explains how it affects your estimate.
Soil conditions in Lenexa range from firm native clays to loose fill soils behind newer homes. If we discover poor bearing soils during excavation, we may recommend over-excavating and replacing with compacted gravel or engineered fill, which increases cost but protects you from future settlement or wall movement. Drainage requirements, such as tying into existing yard drains or creating new daylight outlets, can also affect price.
You can control costs by being clear about what is essential and what is optional. For example, a structural concrete wall with a simple broom finish is more economical than a heavily textured, colored, or stone-faced wall. During the design phase, we can often suggest layout tweaks, such as terracing into two shorter walls instead of one very tall wall, which can improve both safety and budget while still solving your slope or erosion problem.
What Lenexa homeowners should know before hiring
Before you hire any contractor for a concrete retaining wall, there are a few local realities you should consider. First, ask how they plan to handle drainage and freeze-thaw movement. In our area, simply stacking blocks or pouring concrete without a proper drain system is asking for trouble. A detailed explanation of drain pipe, gravel zones, and backfill methods is a good sign that the contractor knows what they are doing.
Next, discuss permits and engineering. In Lenexa and across Johnson County, taller walls or walls near property lines may require engineered drawings and city approval. Legendary Concrete Lenexa can coordinate with local engineers and help you navigate the permit process so you stay compliant and avoid issues if you ever sell your home.
You should also ask about reinforcement details and footing depth, not just the visible finish. A contractor who only talks about how the face of the wall will look, but cannot describe rebar spacing, geogrid use, or base preparation, may be cutting corners behind the scenes. We are always happy to walk you through our design approach in plain language so you know exactly what is going into your wall.
Finally, timing matters. In Kansas, late spring through early fall is usually best for building concrete retaining walls because the ground is workable and concrete can cure without freezing. We still build in cooler months when conditions allow, but we may adjust scheduling to avoid heavy rain or freeze events that could affect excavation and curing. If you have a deadline, such as a pool install or landscaping project, let us know early so we can coordinate schedules.
If you are ready to reclaim a sloped yard, stop erosion, or create more usable outdoor space, Legendary Concrete Lenexa can help you plan and build a concrete retaining wall that fits your property, your budget, and our local climate for the long term.
